Kingsley Machine Company, the Open Chase Type Holders:
In the mid 90's Kingsley Machine Company redesigned there hot stamping machine. It then became possible to
use type holders that would hold more type and standard Hot Foil Stamping Type. The main type holders were
the 72 or 108 point (1" or 1 1/2") in width and up to 4 inches long. This allowed for multiple lines of standard
Hot Foil Stamping foundry type or dies to be used in the Kingsley. The new Kingsley Machines were models
M-101 and AM-101.
The final largest type holder was called the 4" Maximizer and was 4" x 4". In our experience, this was to much
surface area for the machine to print . Kingsley billed it as 10 square inches of hot foil printing area. The
industry standard for a hot foil machine is 1/2 ton of pressure per 1 square inch of hot foil printing area for soft
items, such as napkin imprinting or ribbon imprinting. The M -101 was a hand machine and the AM-101 air
machine could not deliver enough pressure to print the entire 10 square inches or even 1/10th of that area.
In the mid 90's Kingsley Machine Company redesigned there hot stamping machine. It then became possible to
use type holders that would hold more type and standard Hot Foil Stamping Type. The main type holders were
the 72 or 108 point (1" or 1 1/2") in width and up to 4 inches long. This allowed for multiple lines of standard
Hot Foil Stamping foundry type or dies to be used in the Kingsley. The new Kingsley Machines were models
M-101 and AM-101.
The final largest type holder was called the 4" Maximizer and was 4" x 4". In our experience, this was to much
surface area for the machine to print . Kingsley billed it as 10 square inches of hot foil printing area. The
industry standard for a hot foil machine is 1/2 ton of pressure per 1 square inch of hot foil printing area for soft
items, such as napkin imprinting or ribbon imprinting. The M -101 was a hand machine and the AM-101 air
machine could not deliver enough pressure to print the entire 10 square inches or even 1/10th of that area.
| Kingsley Machine Company 72 point (1") by 4" long Typeholder for the M-101 Type is our 72 point Gallia |
| Kingsley Machine Company Circa 1995 M-101 and AM-101 and M101-A Series Machines |
| Kingsley Machine Typeholders Kingsley Machine M-101 Kingsley Machine M101-A Typeholders |
| Kingsley Machine |
| Kingsley Machine Company 3 line 18 point by 4" long Typeholder for the M-101 We have new 4 line, 18 point, 5" Typeholders |

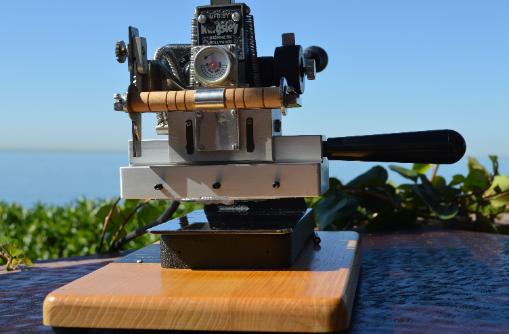

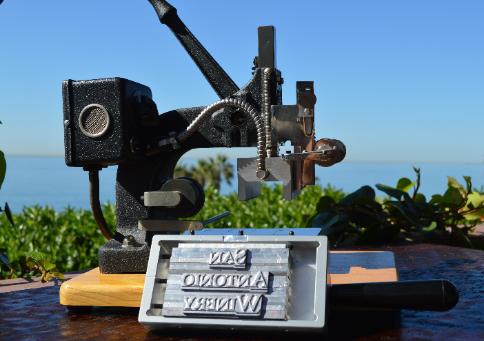

| We have New Typeholder for the M-101 series Starting with a 4 line 18 point by 5" long Typeholder Also we have open box type holders for holding larger type, monograms and dies they come is sizes 1", 1 1/2", 2 1/2" x 5" long Take a look at the photos below. The new style holder at work in the M-101, Note the large Typeholders reduce the space under the head where you feed you work. Make sure this works for you before ordering as the holders are not returnable. |

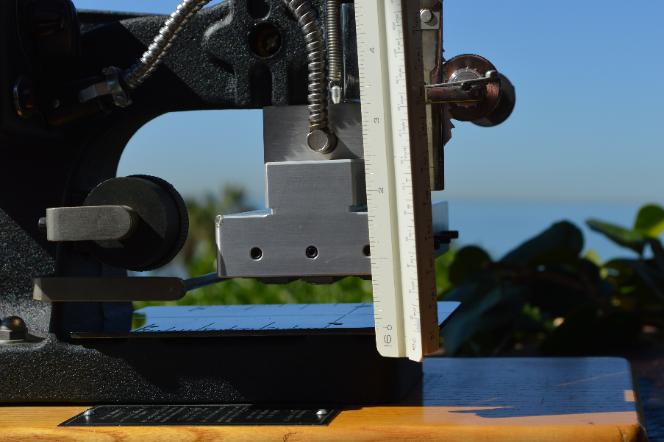

| Kingsley Machine Company M-101 2 1/2 x 5" Typeholder Installed Clearance is about 11/16" |
